Fiber Optic Splitters

Fiber optic splitter is a device used to realize the separation and integration of light wave energy. It allocates the light energy transmitted in one fiber to two or more fibers at a given proportion, or synthesizes the optical energy transmitted in multiple fibers into one fiber. Fiber splitter is one of the most important passive devices in fiber link, with multiple inputs and multiple outputs, and a splitter with M inputs and N outputs represented by M.N.

PLC Splitters

Planar light wave circuit (PLC) splitters is an integrated waveguide optical power distribution device based on a quartz substrate for passive optical networks (EPON, BPON, GPON, etc.) and FTTx networks to connect the end and terminal equipment and achieve the separation of optical signals. PLC splitter is one of the most important passive optical devices in a fiber link, with one or more inputs and multiple outputs.

Rack Mount/ LGX Splitters

The LGX PLC splitter is packaged in box, For the FTTX system to distinguish the user access point, the main role is to complete the end of the fiber cable into the community or building, with fiber fixed, open and stripping, fusion, jumper, splitting and other functions, after the separation of light in the form of in-house fiber cable into the end user. Rack-mounted PLC splitter is in a metal box package and can be installed in a 19-inch 1U cabinet.

Fiber Optic Splitters from Professional China Manufacturer

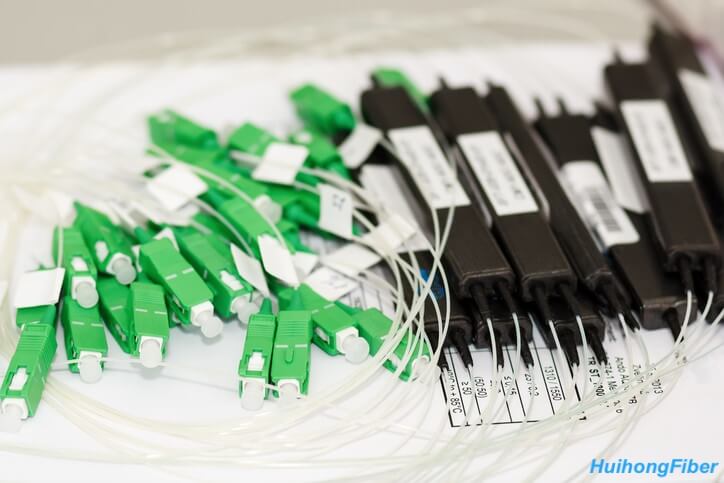

As the name, the fiber splitter is a bundle of fiber divided into several bundles at a certain rate of splitting. Fiber splitter is one of the key components in optical fiber transmission technology. Typical parameters for fiber splitters include the cable length, split ratio, operating wavelength, and which fiber optic connector is used in the input and output portion. As with fiber optic plug-in cables, fiber splitters typically use 0.9mm, 2mm or 3mm cables. Stainless steel tube packaging fiber splitter more than 0.9mm outer diameter cable, box-type packaging fiber splitter more use 2mm and 3mm cable. Based on the difference in working wavelength, it is divided into single-window and dual-window fiber splitters. There are single-mode fiber splitters and multi-mode fiber splitters. Typical connectors installed on fiber optic splitters are FC or SC type. Packages include LGX, rack mount, PLC, FTB, etc.

Huihongfiber is an optical communications enterprise, the company gathered a group of experienced product research and development personnel and experienced production and quality management personnel, jointly committed to fiber optic cable, optical fiber passive device research and development, production and sales. Huihongfiber main products for indoor and outdoor fiber optic cable, MPO/MTP fiber optic cable components, fiber optic splitter, cable assemblies, transceivers, FTTA cables, FTTH cables. The company strictly implement ISO9001 quality management system, with excellent equipment and qualified management personnel to ensure product quality and stability, excellent performance, and good after-sales service, to win the trust of the vast number of users, the company’s products are exported to all over the world.
